Traxxas 4-Tec 2.0 VXL AWD Chassis-Only: 1/10 Scale AWD On-Road, Fully-Assembled, Waterproof, TQi 2.4GHz Radio System, Traxxas Stability Management, VXL-3s Electronic Speed Control. Requires: 200mm Body, Battery and Charger

Traxxas - R/c Cars & Trucks->R/c On-road Rtr Vehicles\1/10


$439.99

SKU: TRA83076-4
UPC: 020334830739

1 In Stock
Add To Cart

1/10 Scale 4-Tec 2.0 VXL AWD Chassis

The 4-Tec 2.0 VXL chassis provides the ultimate high speed driving experience. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while providing unprecedented rigidity and tight tolerances. The waterproof VXL-3s electronic speed control channels massive power to the Velineon brushless motor for four wheel tire-spinning acceleration and incredible 70+mph top speed. A finely tuned suspension keeps the wheels glued to the pavement and Traxxas Stability Management (TSM) provides lightning-quick corrections to keep you in control. Grab the transmitter, rip full throttle, and hold on! The Traxxas 4-Tec 2.0 VXL delivers a high speed thrill ride like you've never experienced.

Class-Leading Brushless Power

The 4-Tec 2.0 VXL's Velineon brushless power system defines a whole new generation of outrageous electric power that doesn't know limitations and boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the 4-Tec 2.0 VXL chassis' four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s brushless power system features system components that work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It's engineered together from the start to deliver the ultimate in efficiency, speed, and run-time along with precision throttle response and refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.

Traxxas Stability Management (TSM)

Traxxas Stability Management lets you experience your 4-Tec 2.0 VXL's extreme power, speed, and acceleration by making it easier to control on slippery surfaces where traction is not ideal. Go ahead, punch it off the line! TSM senses the vehicle's direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the 4-Tec VXL's line for faster exit speeds. TSM even improves braking by keeping the car arrow straight until you reach a complete stop. TSM does all this without intruding on driving fun or introducing unexpected side effects. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. Drive faster and have more fun with TSM. You may not even realize how much it is helping until you try to drive without it.

New VXL-Rated Response Tires

Sticky VXL-rated Response street tires are rated for high speed runs and wrap around gorgeous replica wheels with lug nut details (patents pending). The replica brake discs incorporate standard 12 mm wheel hexes and feature red brake calipers. The brake calipers even switch from leading to trailing orientation to give your ride that fully authentic look.

100% Fully Assembled

The Traxxas 4-Tec 2.0 VXL rolls out of the box pre-assembled with a factory-adjusted TQi 2.4GHz radio with TSM, Velineon brushless power system, and detailed instructions. Choose your own body, battery, and charger (sold separately) to create your custom ride. Traxxas backs the 4-Tec 2.0 VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun--and fast!

Features:

  • Powered by the Velineon brushless power system
  • Traxxas Stability ManagementTM (TSM)
  • Waterproof electronics permit driving in water, mud and snow
  • Waterproof, O-ring sealed receiver box

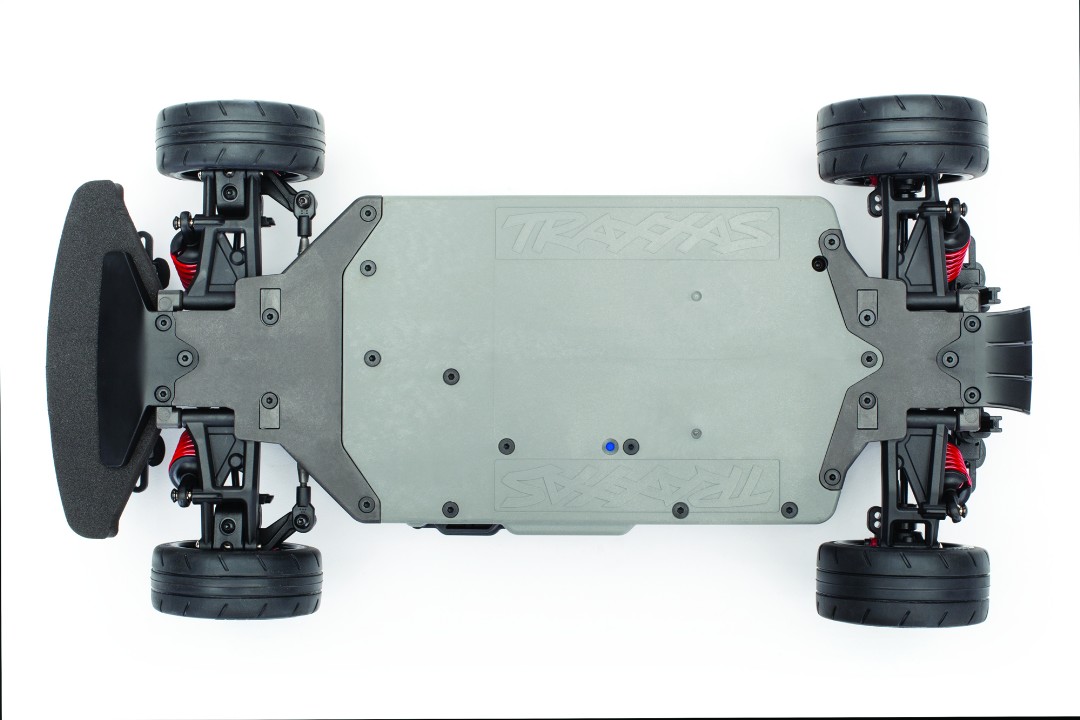

  • Smooth underside resists drag and snags
  • Angled front bumper improves approach angle
  • Velineon VXL-3s electronic speed control
    • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
    • Sport Mode - forward / brake / reverse
    • Race Mode - forward / brake
    • Training Mode - 50% forward / brake / 50% reverse (patented)
  • Velineon 3500 brushless motor
    • Consistent, high-power output, run after run
    • Low-maintenance, unique Traxxas design
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
  • TQi 2.4GHz transmitter
    • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability Traxxas Link is designed for use with Android 4.4 and up or iOS 7.0 and later.
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models - just switch on and drive, "model selection" is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533),fail-safe security and integrated telemetry ports
  • High-torque waterproof Traxxas #2075 steering servo

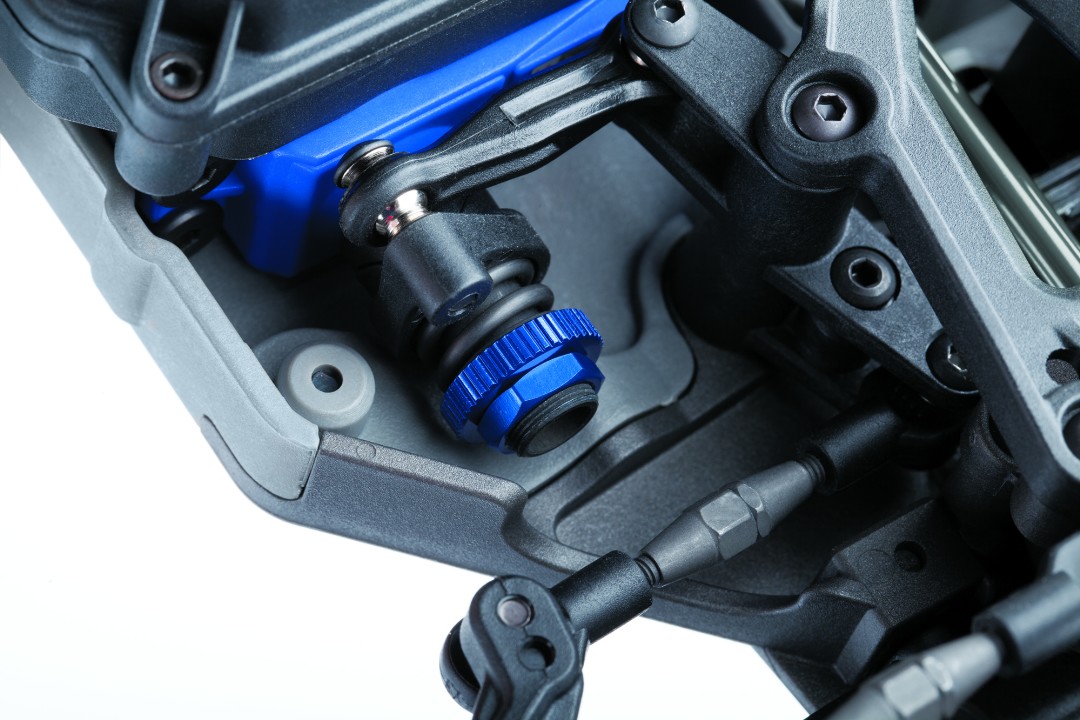

  • Anodized blue aluminum servo saver integrated into servo horn

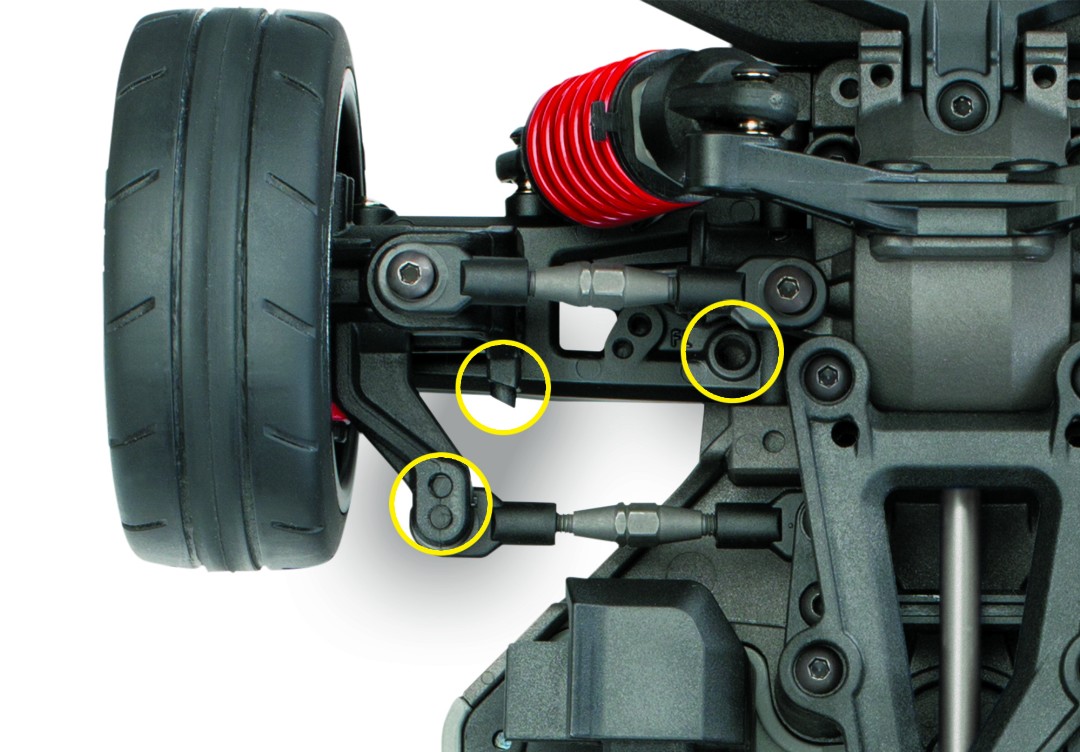

  • High steering angle option

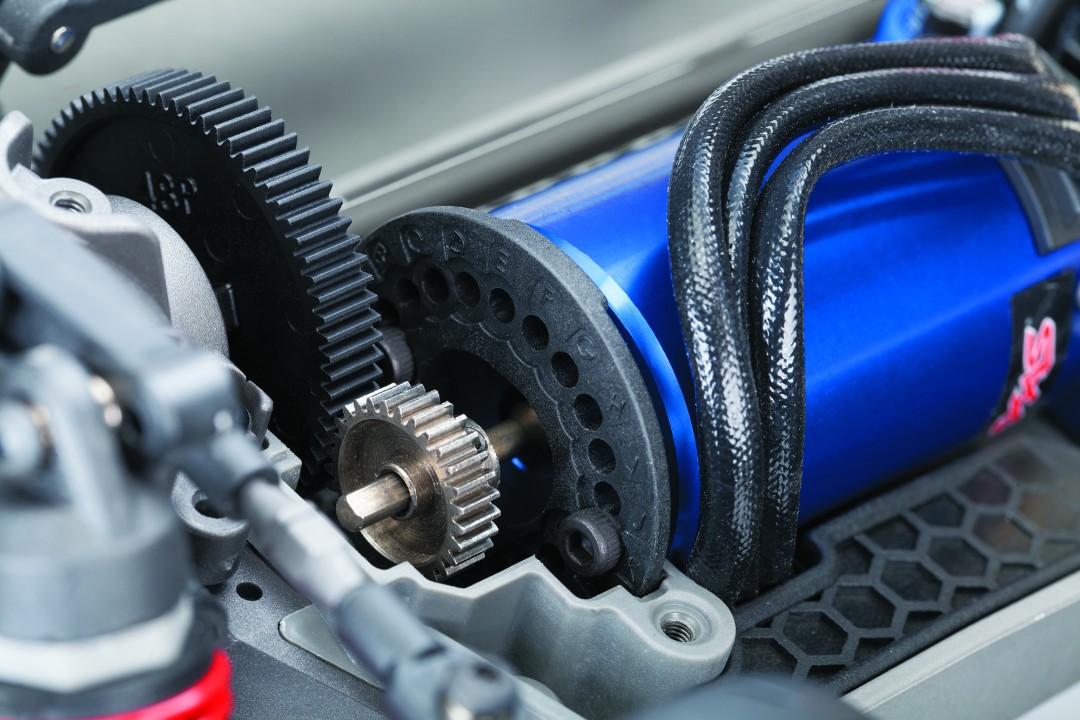

  • Fixed gear with 11 different gearing positions
  • Molded wire retainer keeps motor wires secure
  • Adjustable body mounts for custom 200 mm bodies
  • Sealed, silicone-filled differentials
  • Low center of gravity (Low CG) Chassis

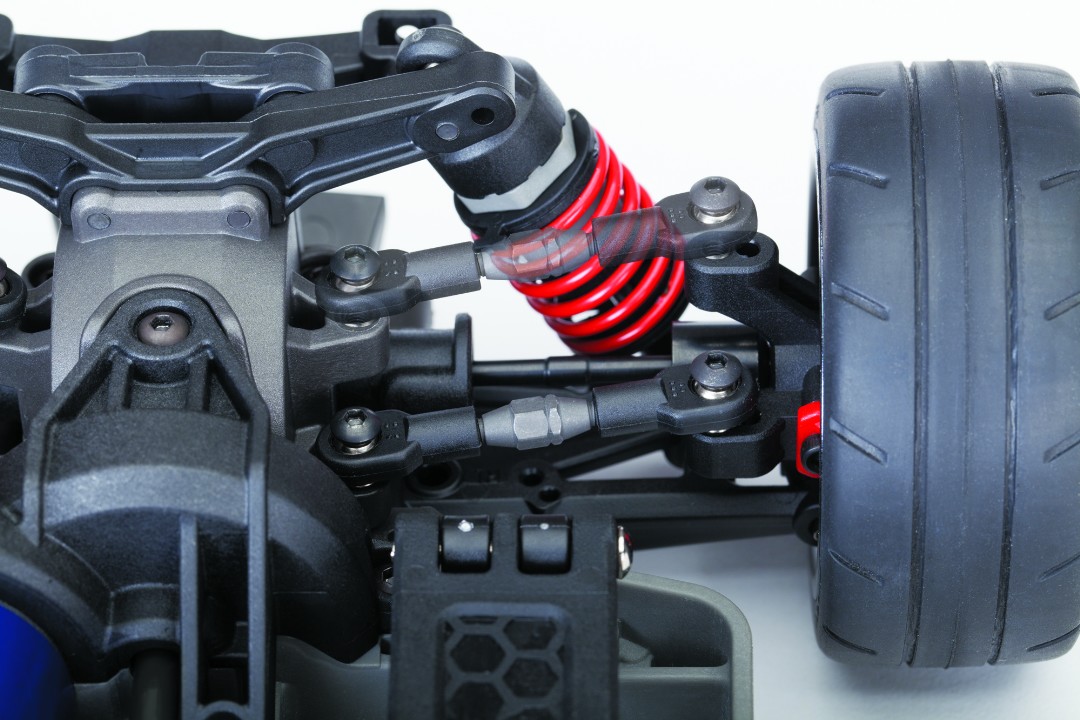

  • Fully adjustable oil-filled Ultra Shocks with X-ring technology
  • Red powder coated shock springs feature a responsive spring rate
  • Adjustable battery hold down
  • Full-time shaft driven 4-wheel drive
  • One piece steel driveshaft

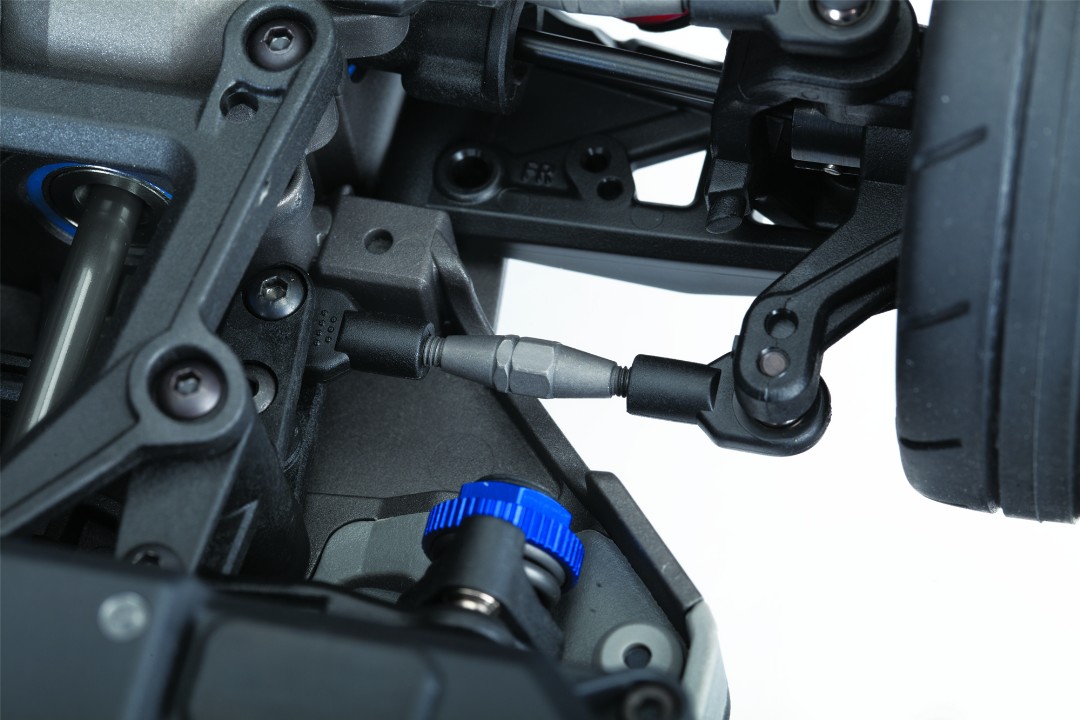

  • Adjustable steel turnbuckles and steering links
  • Rubber-sealed ball bearings
  • Black chrome wheels with lug nut detail
  • VXL-rated high-performance Response tires
  • Replica brake discs incorporate standard 12 mm wheel hexes
  • Backed by unparalleled Traxxas support and parts availability
Vehicle Specs
Length:14.94 inches (379 mm)
Front Track:7.7 inches (196 mm)
Rear Track:7.9 inches (200 mm)
Center Ground Clearance:0.3 inches (9 mm)
Weight:50.88 ounces (1.44 kg)
Height (overall):5.07 inches (129 mm)
Wheelbase:10.1 inches (256 mm)
Shock Length:Short (front and rear)
Tire Diameter:2.6 inches (66 mm)
Tire Width (front):1.0 inch (26 mm)
Tire Width (rear):1.2 inches (30 mm)
Wheel Diameter:1.9 inches (48 mm)
Speed Control Type:VXL-3s Electronic Speed Control
Motor (electric):Velineon 3500 brushless
Overall Drive Ratio:6.87
Differential Type:Hardened steel bevel, sealed, limited slip
Gear Pitch:48
Chassis Structure/Material:Molded tub / Nylon composite
Drive System:Shaft-driven, direct drive 4WD
Steering:Dual-bellcrank
Radio System:TQi 2.4GHz radio with TSM receiver
Skill Level:3
Top Speed:70+mph
Battery Tray:158 mm long / 46 mm wide / 23 or 26 mm high
Required Items (Sold Separately):4 "AA" batteries (for transmitter),charger, 6 or 7-cell NiMH or 2 or 3-cell LiPo battery
ESC Specs
Input Voltage:NiMH 4-9 Cells (4.8 to 10.8 Volts DC)
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:39 mm x 55 mm x 33 mm
Weight:90 grams
Motor Limit (Brushless):No motor limit
On Resistance Forward:0.00075 Ohms
On Resistance Reverse:0.00075 Ohms
BEC Voltage:6.0 V
BEC Current:2.5A
Power Wire:12-Gauge Maxx Cable
Input Harness Wire:26 Gauge / 100 mm
Low Voltage Detection:2-Stage indicators, switchable (on or off)
Thermal Protection:2-Stage thermal shutdown
Profile selection:Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode: 50% FWD, 100% brakes, 50% REV
Single-Button Setup:Yes, Traxxas EZ-Set
Battery Input Connector :Traxxas High-Current Connector
Motor Types :Brushless
Ports:RX input, auxiliary fan
