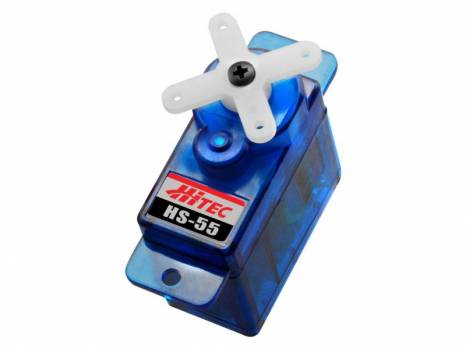

Hitec HS-55 Hitec/JR Servo

The HS-55 set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Featured in a hundred model aircraft reviews worldwide, the HS-55 is your best choice when it comes to controlling "smaller" Electric's and Park Flyers.

Features:

Affordable Performance
Precision Components
Strong, Long-Lasting Nylon Gears
Market's Most Reliable Micro Servo
Most Popular Servo

Performance Specifications
Operating Voltage Range (Volts DC):	4.8V ~ 6.0V
Speed (Second @ 60°):	0.17 ~ 0.14
Maximum Torque Range oz. / in.:	15 ~ 18
Maximum Torque Range kg. / cm.:	1.1 ~ 1.3
Current Draw at Idle:	5.5 mA
No Load Operating Current Draw:	150 mA
Stall Current Draw:	450 mA
Dead Band Width:	8 us
Physical Specifications
Dimensions (Inches):	0.89 x 0.45 x 0.94
Dimensions (Metric):	22.8 x 11.6 x 24.0
Weight (Ounces):	0.28
Weight (Gram):	8
Circuit Type:	HT7003 Analog SMT
Motor Type:	Coreless Metal Brush
Gear Material:	Nylon
Bearing Type:	None
Output Shaft (type / 0mm):	Feather 15 / 8
Case Material:	Plastic
Dust / Water Resistance:	N / A
Connector Gauge (AWG) / Strand Count:	28 / 20
Radio Control Applications
Parkflyer:	< 36 oz.
Sport Plane:	20 - 35 oz.
Sailplane:	< 2 meter / DLG
3D Performance:	Foamie
Scale:	N / A
Electric Helicopter:	200mm
Gas Helicopter:	N / A
On Road:	N / A
Monster Truck:	N / A
Buggies:	N / A
Truggies:	N / A
Short Course / Truck:	1/8th
Crawlers:	N / A
Sail Boat:	N / A
Power Boat:	1/8th
